    Manufacturer: Secoh

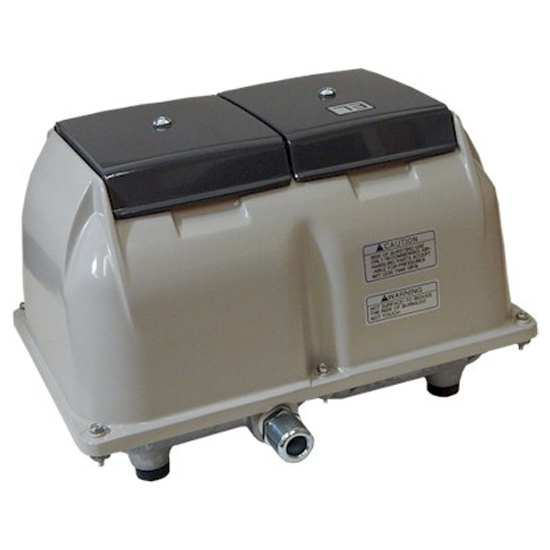

    Secoh EL-120 Linear Air Pump

    Item #: FPZEL120
    $465.00
    Ship to
    *
    *
    Shipping Method
    Name
    Estimated Delivery
    Price
    No shipping options

    Free Shipping Over $30

    Same Day Shipping! Mon.-Fri.

    (If Ordered by 2:00 pm CST)

    100% Satisfaction Guarantee

    View Return/Exchange Policy

    The Secoh EL-120 Linear Air Pump has a maximum airflow of 4.41 cfm and maximum pressure of 2.8 psig.

    Secoh Linear Diaphragm Air Pumps are compact and made of light construction materials yet provide solid performance in septic aeration.

    Secoh has been manufacturing oilless diaphragm linear air compressors since 1966.

    Linear air compressors function by energizing electromagnets that oscillate a magnet in opposite directions. The magnet moves back and forth between the electromagnets at the same frequency as the power supply. The magnet is connected to two diaphragms and as the magnet oscillates, it changes the valve box volume, which creates vacuum or pressure.

    This Secoh pump must always be installed above water level. A pump that is set below the back flowing of the water may cause an electrical short circuit, leading to leakage and premature pump failure.

    Warranty

    The Secoh EL-120 Linear Air Pump comes with a 1-year manufacturer warranty.

    Product Details


    • Rainproof enclosure - conforms to UL1450
    • Quiet operation, 33 db (A)
    • Easy maintenance - occasional filter change necessary
    • Low power consumption, vibration & pulsation, smooth airflow delivery
    • Oil free operation - guarantees contamination free airflow

    Service Manual

    Products specifications
    Voltage
    115V, 60HZ, 126W
    Unit Weight
    35.3 lbs
    Unit Dimensions
    14.06"L x 9.72"W x 8.98"H

    Overview

    • Rainproof enclosure - conforms to UL1450
    • Quiet operation, 33 db (A)
    • Easy maintenance - occasional filter change necessary
    • Low power consumption, vibration & pulsation, smooth airflow delivery
    • Oil free operation - guarantees contamination free airflow

    Service Manual

    Specifications

    Products specifications
    Voltage
    115V, 60HZ, 126W
    Unit Weight
    35.3 lbs
    Unit Dimensions
    14.06"L x 9.72"W x 8.98"H
