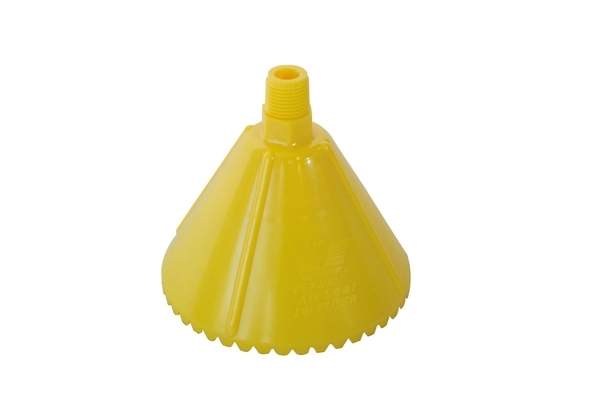

    Cone Diffuser

    Item #: JET8350472
    $29.00
    Ship to
    *
    *
    Shipping Method
    Name
    Estimated Delivery
    Price
    No shipping options
    Availability: In Stock, Ready to Ship!
    Be the first to review this product

    Free Shipping Over $30

    Same Day Shipping! Mon.-Fri.

    (If Ordered by 2:00 pm CST)

    100% Satisfaction Guarantee

    View Return/Exchange Policy

    The cone diffuser is a clog free, bottom discharge diffusers that uses a trapped bubble of air to keep wastewater out of the air pipes. Each Air-Seal diffuser can handle up to 12 CFM. This diffuser may be used with most septic air pumps including Whirlwind, Gast, Secoh and Medo pumps.

    Product Details

    • 1/2" Pipe threads
    • Diffuser measures 5" diameter by 4 1/2" tall

    Streams of air passing through the cone diffuser are first broken up when passing through the sectioned orifice. next the rubber diaphragm blown aside by the force of inrushing air continues breaking up the air stream. Finally, notches at the base of the diffuser break the air into still smaller bubbles giving a greater surface area for more contact with the wastewater. This greater bubble surface area transfers much more oxygen to the wastewater than larger bubbles do. The end result is high oxygen transfer efficiency and mixing action giving a smooth, even, fast aeration process.

    Overview

    • 1/2" Pipe threads
    • Diffuser measures 5" diameter by 4 1/2" tall

    Streams of air passing through the cone diffuser are first broken up when passing through the sectioned orifice. next the rubber diaphragm blown aside by the force of inrushing air continues breaking up the air stream. Finally, notches at the base of the diffuser break the air into still smaller bubbles giving a greater surface area for more contact with the wastewater. This greater bubble surface area transfers much more oxygen to the wastewater than larger bubbles do. The end result is high oxygen transfer efficiency and mixing action giving a smooth, even, fast aeration process.
