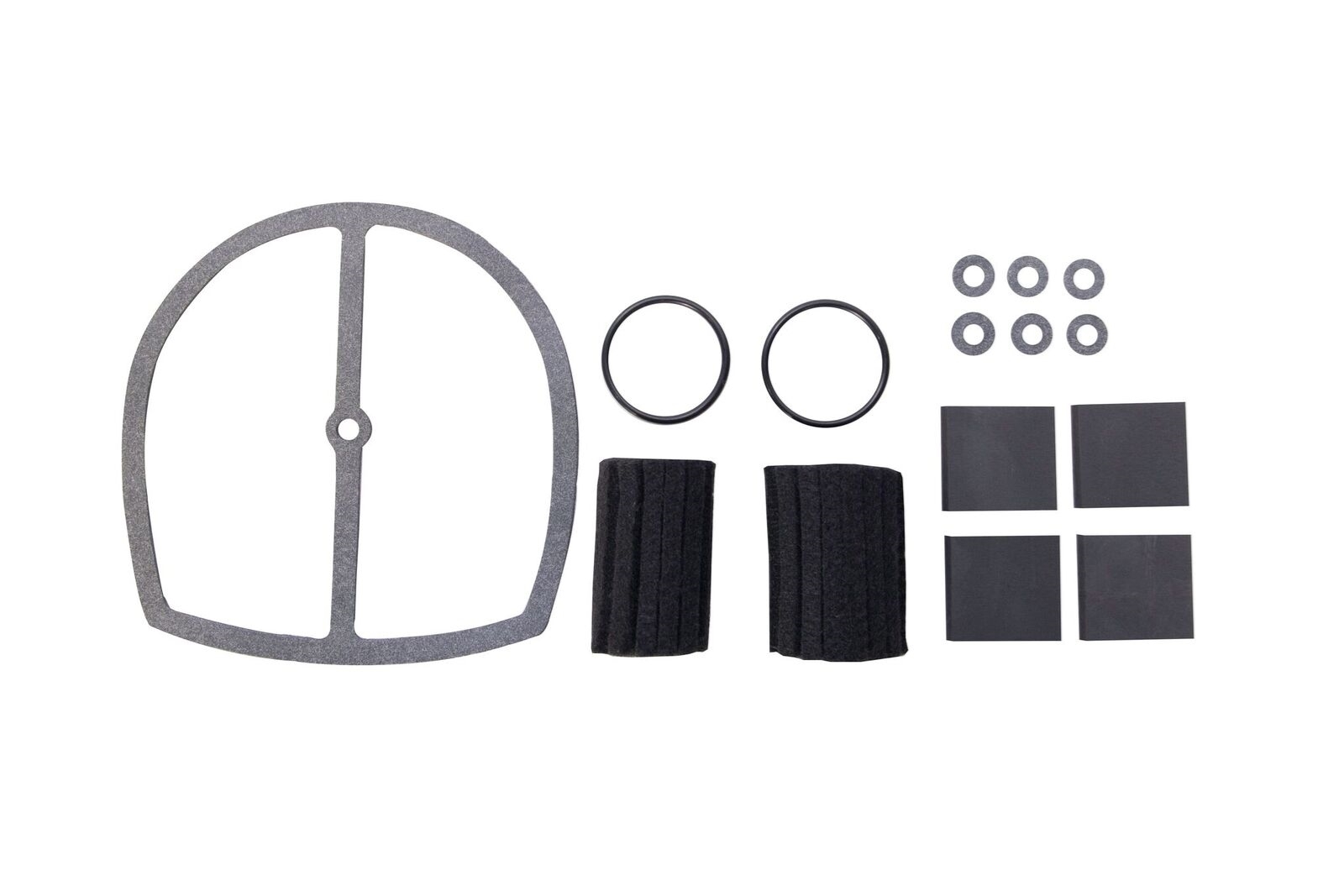

SSIK479 Vane Kit for Gast 1023 Rotary Vane Air

The AC393 Orange Filter Element is a replacement for the AC432 assembly. This filter maximizes and protects the performance of the Gast pump. Recommended change interval is every 6 months.

The AK510 Plastic Stem is the replacement end cap for Gast 23 Series Rotary Vane Compressors as well as the AT03 and AT05 models.

Replacement End Cap Assembly for Gast 0523, 1023, AT03 and AT05 Rotary Vane Air Compressors.

Includes One (1) endcap stem One (1) filter One (1) o-ring

The SSIK478 Vane Kit is the compatible repair kit for Gast 0523 and 0323 oil-less models with internal filtration. The kit includes four vanes, one gasket, two internal filters and two o-rings. A new rebuild kit is recommended every two years.

Gast compressors provide many years of dependable service but due to continual wear over time some compressor components may need to be replaced in order to continue to provide the proper air flow. Instead of purchasing a new pump, you may need to just replace some internal components.

Vane Dimensions 1-1/4" L x 1-3/8" W

Vane Thickness 1/8"

The Gast 1023 Rotary Vane Air Compressor is a rotary vane type compressor/vacuum pump with an oiless operation, low maintenance, long lasting durable pump. The 1023 is a dual voltage unit which can be wired at 120V or 220V but comes pre-wired for low voltage.

The Gast 1023 Rotary Vane Air Compressor pump includes an internal muffler and filter silenced for quieter operation and a thermal protector to protect the motor from overheating and burning out.

The rugged Gast 1023 has a tough cast iron housing and sealed bearings providing a low maintenance and durable solution for just about any low pressure application.

Used in Nayadic and other systems.

Nayadic is a Registered Trademark of Consolidated Treatment Systems, Inc.

Includes (1) thermal protector (1) internal muffler (1) filter

Warranty

The Gast 1023 Rotary Vane Air Compressor comes with a 1-year manufacturer warranty.
